Informations about the system
D39 is a portable box climate unit (cover or lid cooler) with one cooling unit für EDAK-/ZARGES cases and alikes with internal rack systems usw.
DescriptionDetailsMiscellaneous
This mobile unit is quickly attached to a case via a suitable adapter plate. Current has to be provided by the case.
The unit collects the heat energy within the rack, circulates it out of the case and leads conditioned air back in.
Units like these can also be called: climate lid, climate cover, lid cooler, cover cooler, case lid cooler, case cover cooler, case lid climate unit or case cover climate unit.
Color: RAL6031 F9 or HR or per customers order
Delivery contents: 1 cooling unit

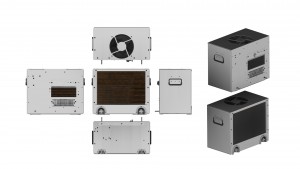

D39 – View from all sides
D39 – Mounting row, seen from front and aft views
| Item name | D39 | |
| Measurements W*D*H in mm | 500 * 290 * 390 | |
| Weight | >= 24 kg (compressor dependent) | |
| Current | 240 V, 50 Hz/60 Hz | |
| Surrounding air | -32 °C to +55°C | |
| Unit is air cooled | ||
| Generated cool air | 20 – 30 °C | |
| Cooling liquid | R134a | |
| Cooling capacity | 300 W to 1.000 W | |
| Principle | Direct evaporation | |
| Heating | 300 W to 1.650 W | |
| Field of application | Mobile, attached to EDAK MILEX and other cases like those | |
| Climate of application | Desert, tropics, optional maritime |
