Informations about the system
KDV01 is an air conditioning module for separately available container split climate units
Its purpose is to condition the air within the container. To achieve this it warms the air by use of its build in heating or collects the present heat and transports it to the external unit.
From there the steadily circulating coolant transports the now cool again medium back to the internal unit, where it is used to cool the vented air again. The air flow is done via 5 manually controllable air vents facing inward.
Color: RAL6031 F9 or HR or per customers order
Delivery contents: 1 air conditioning module, third-party main climate device sold separately

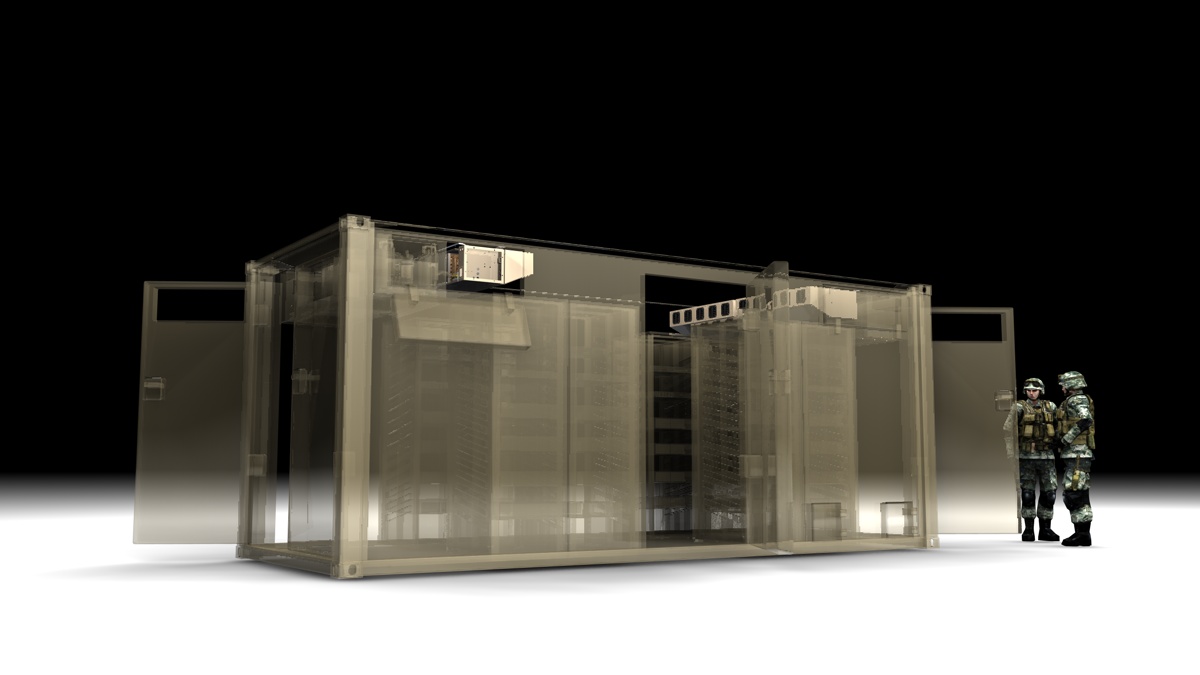

KDV01 – Illustration with semi-transparent view into the container

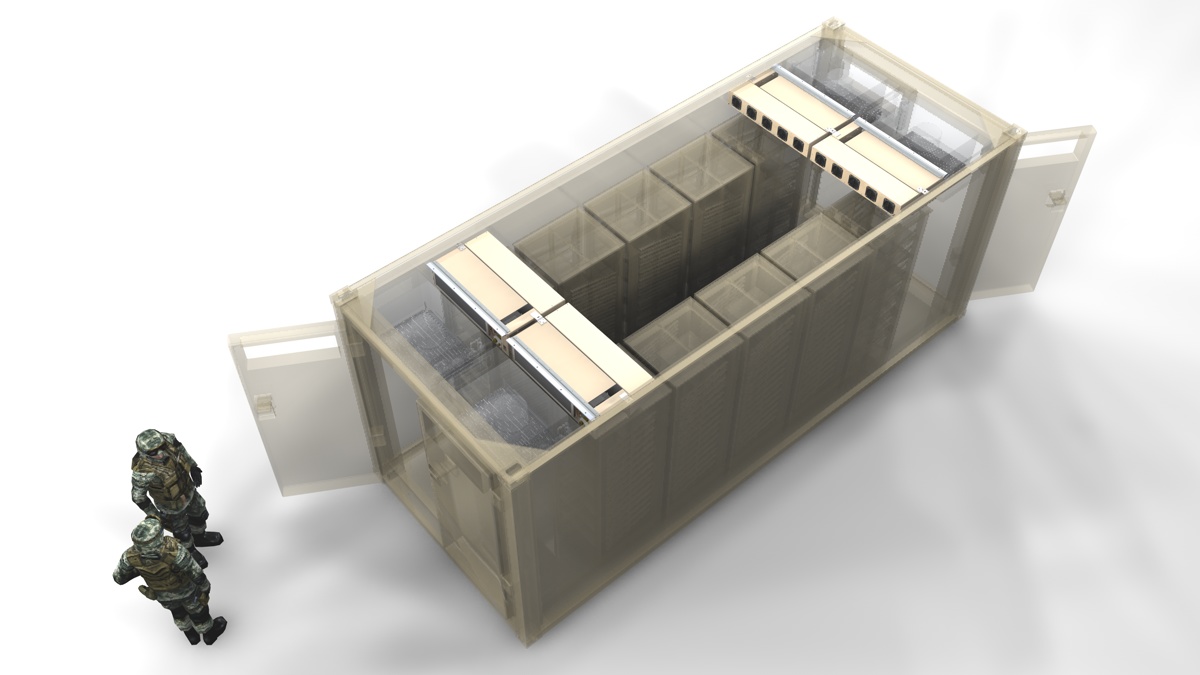

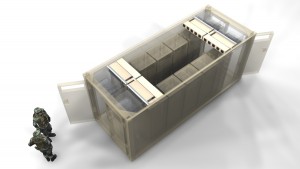

KDV01 – Illustration with 4 mounted air conditioning modules

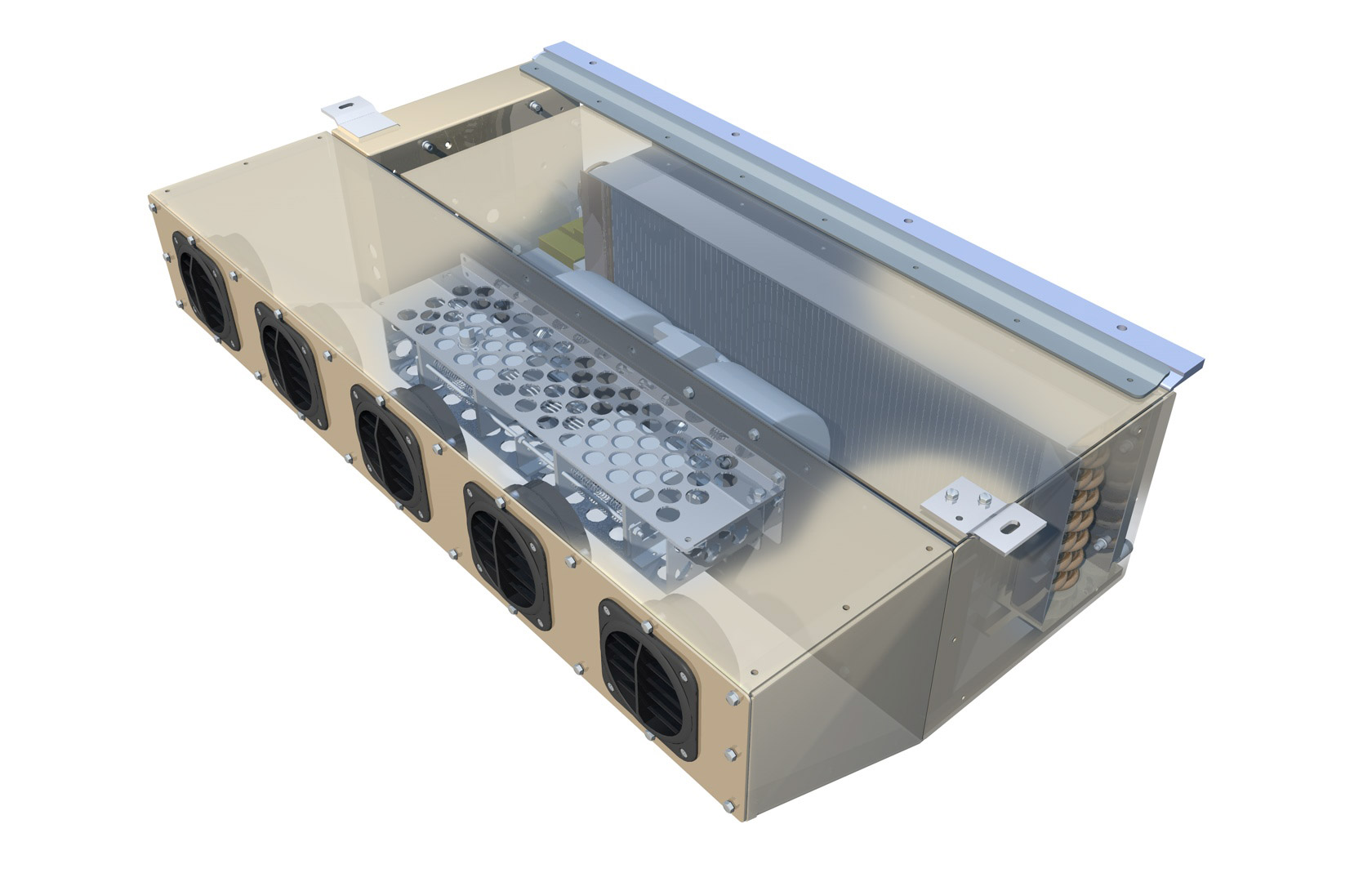

KDV01 – Illustration with semi-transparent view
| Item name | KDV01 |
| Measurements W*D*H in mm | 907 * 554 * 230 |
| Weight | >= 30kg |
| Current | 24V DC o. 240V AC 50Hz/60Hz |
| Surrounding air | -32°C to +55°C unit is air cooled |
| Generated cool air | 16-30°C |
| Cooling liquid | R134a |
| Cooling capacity | as per 3rd party climate unit |
| Principle | general air conditioning |
| Heating | 1.600W – 8.000W |
| Field of application | Stationary, in containers and stationary compartments |
| Climate of application | Desert, tropics, optional maritime |
