Informations about the system
RC-S70 is a split climate system. The set consists of a roof condenser and an internal rack climate evaporator unit. It is thought for Bv206 trailers f.e. with 19″ rack systems, USV- or engineering compartments
Developed by KTS HENGSTBERGER GMBH primarily for the Haegglund Bv206 and its successing variants, the server rack climatization system RC-S70 impresses with its compact formfactor, powerful efficiency and multiply proven reliability even under heavily stressful in-field conditions.
The external condenser unit is attached to the roof of the Bv206’s trailer. The trailer internal evaporator unit is attached to a built-in rack.
The system circulates the energy rich air out of the rack and leads conditioned air back in. Excess cooling capacity is used to take part in conditioning the trailers interior.
Color: RAL6031 F9 or HR or per customers order

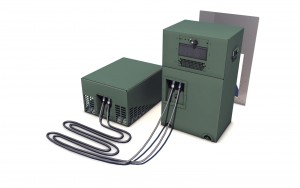

Delivery contents: 1 external condenser unit, one internal evaporator unit, 1 pair of coolant hoses
Promo video
Clip intended for use on industry trade fairs. It shows a concept setup, not the actual devices.
(Click symbol at the bottom right hand to enlarge, FLV file, Flashlayer necessary)
3D & Video © SDVC.de

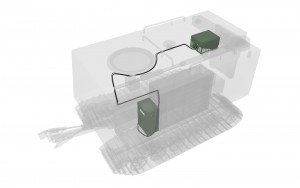

RC-S70 – Illustration of the installation

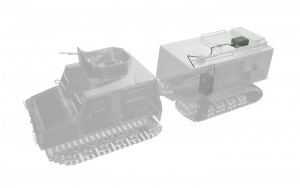

RC-S70 – Illustration of the complete setup
Split climate system RC-S70
| Item name | RC-S70 | |
| Measurements W*D*H in mm |
Roof condenser (external) Evaporator unit (internal) |
|
| Weight | >= 39 kg (compressor dependent) | |
| Current | 240 V DC o. 240 V/400 V AC, 50 Hz/60 Hz |
|
| Surrounding air | -32 °C to +55°C | |
| Unit is air cooled | ||
| Generated cool air | 16 – 30 °C | |
| Cooling liquid | R134a | |
| Cooling capacity | 1.000 W to 7.000 W | |
| Principle | Direct evaporation | |
| Heating | 1.600 W to ~2.450 W | |
| Field of application | Mobile in Bv206 trailers and successors as well as in other vehicles | |
| Climate of application | Desert, tropics, optional maritime |
This product belogs to the standard product palette of KTS
