Information about the system
The DxxU Series, featuring D06U, D08U, D10U and D12U, offers lid integratable climate systems.
These units are made to be integrated in the lids of DESAPRO or Zarges transport boxes.
They can also be operated when stacked. System control works via simple thermostats and via a remote or an internal controller.
They are future-proof thanks to easily replaceable components.
The power supply is to be provided from the respective case.
Just like our other lid air conditioning units, the DxxU systems collect heat energy generated during operation in the transport case, dissipate it to the outside and allow cooled or heated air to flow back in if necessary.
Alternative names for devices of this type include; air conditioning cover insert/slide-in , cover insert climate unit, cover insert/slide-in air conditioner, cover insert air conditioner, insert / slide-in for air conditioners or insert/slide-in for case air conditioners.
Color: RAL6031 F9 or HR or according to customer specifications
Scope of delivery: 1 device

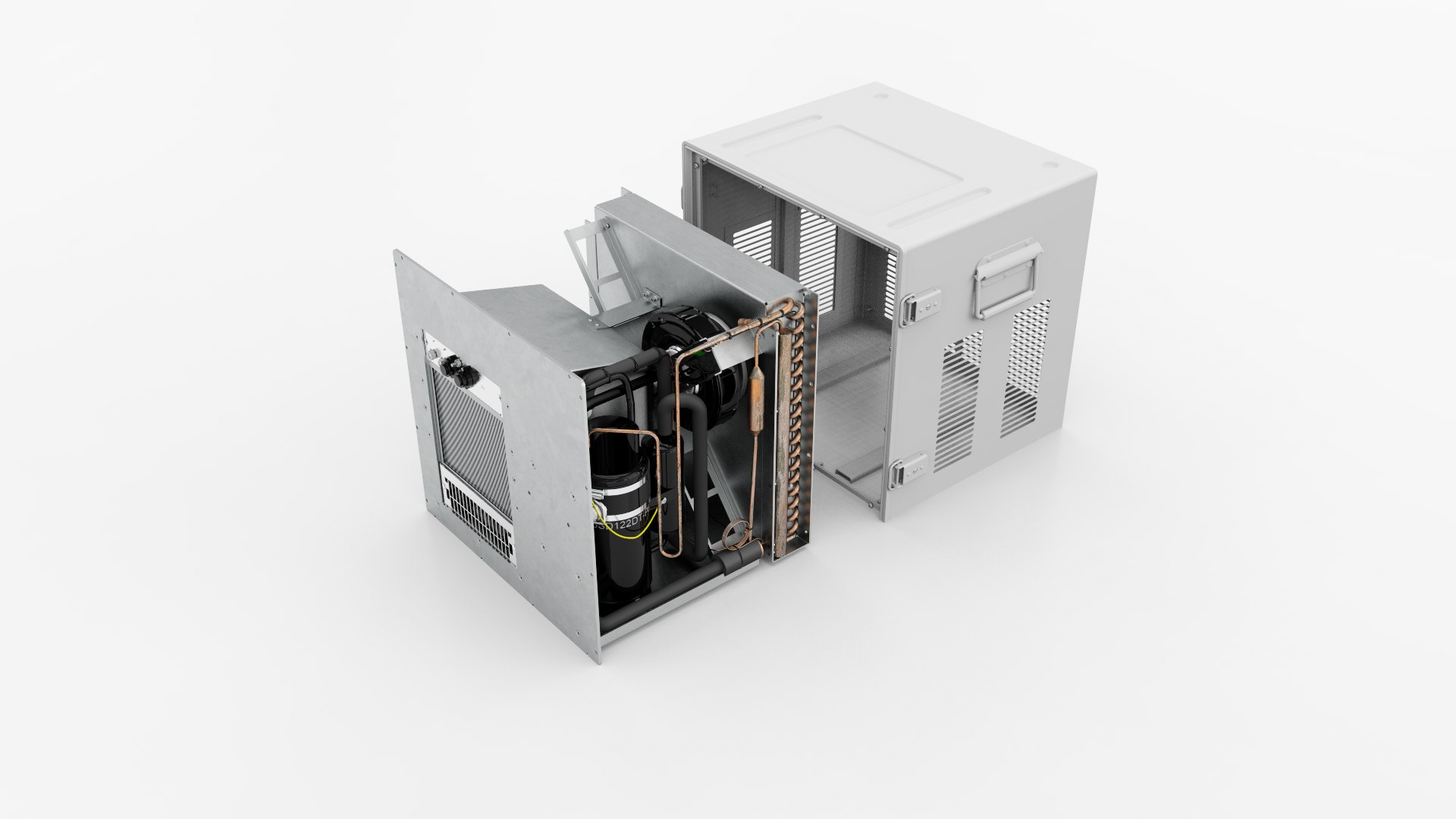

DxxU – Model D10U, prior to insertion

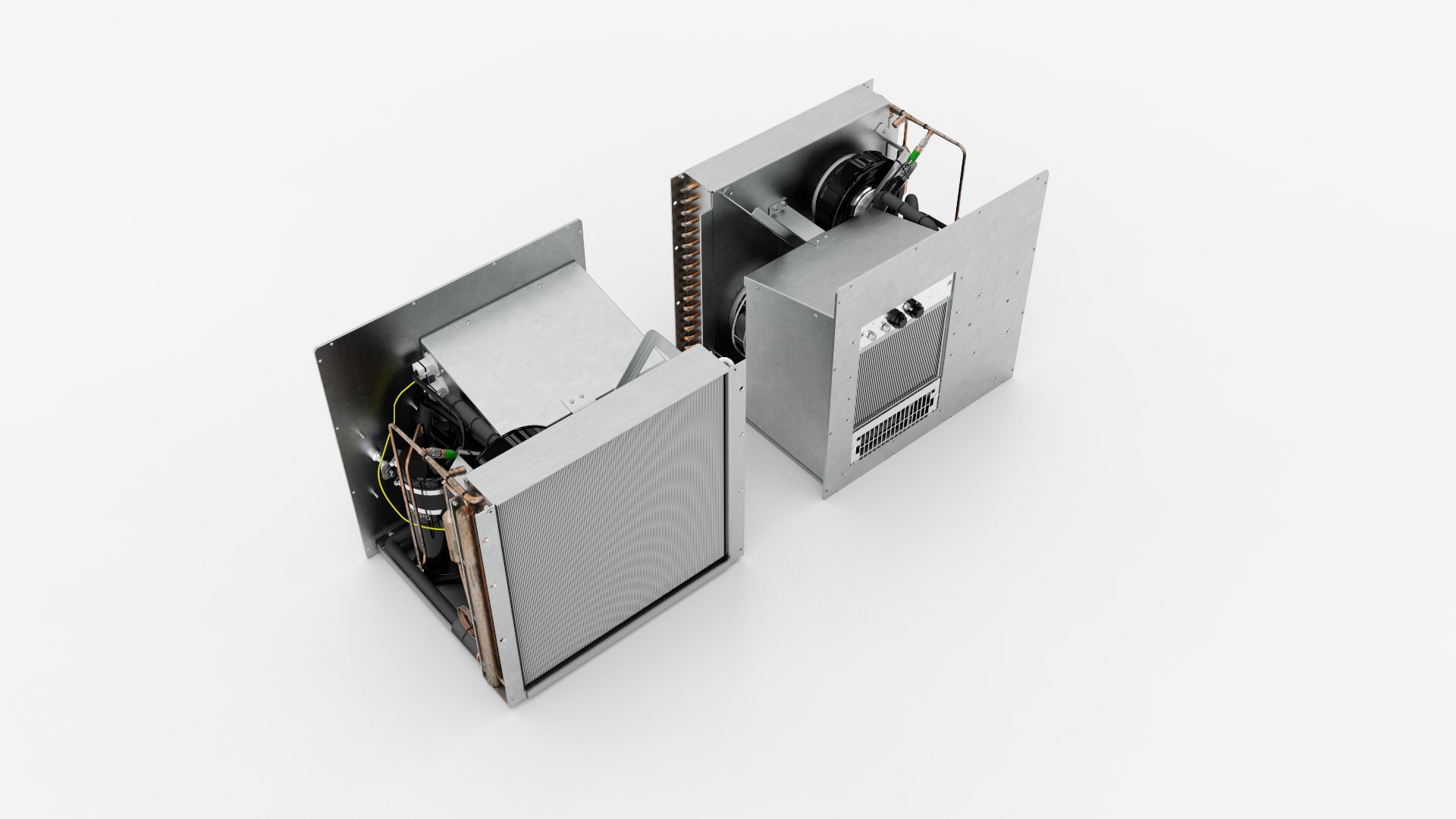

DxxU – Model D10U, front, rear
| Designation | D06U, D08U, D10U, D12U | |
| Measures W*D*H in mm | W: 525 D and H are lid/enclosure dependent |
|
| Weight in kg | ~28 – ~62 (lid/compressor dependent) | |
| Power supply | 240V, 50Hz/60Hz | |
| Environment air | -40°C to +55/60°C | |
| system is air cooled | ||
| Produced cold air | 20 to 30°C | |
| Refrigerant | R134a | |
| Amount | device dependent | |
| Cooling capacity | 800W to 2.500W | |
| Cooling operation | +10°C to +55°C | |
| Principle | Direct evaporation | |
| Heating | 730W to 1.600W | |
| Heating operation | -40°C to +10°C |
| Application range: | Mobil, for integration within lids of DESAPRO, ZARGES and the likes | |||||||||||||||||||||||||||||||||||
| Intended climate: | Desert, tropics, optionally maritime | |||||||||||||||||||||||||||||||||||
| Lacquered/coated | As per MIL standards, per Customers specifications or unpainted (Standard) | |||||||||||||||||||||||||||||||||||
| Case flanging | Size dependent, hinge or bayonet lock | |||||||||||||||||||||||||||||||||||
| Optionals | Partial-load, unloaded start, current limiting, operation with UPS and/or generator | |||||||||||||||||||||||||||||||||||
The DxxU series in detail
|
||||||||||||||||||||||||||||||||||||
